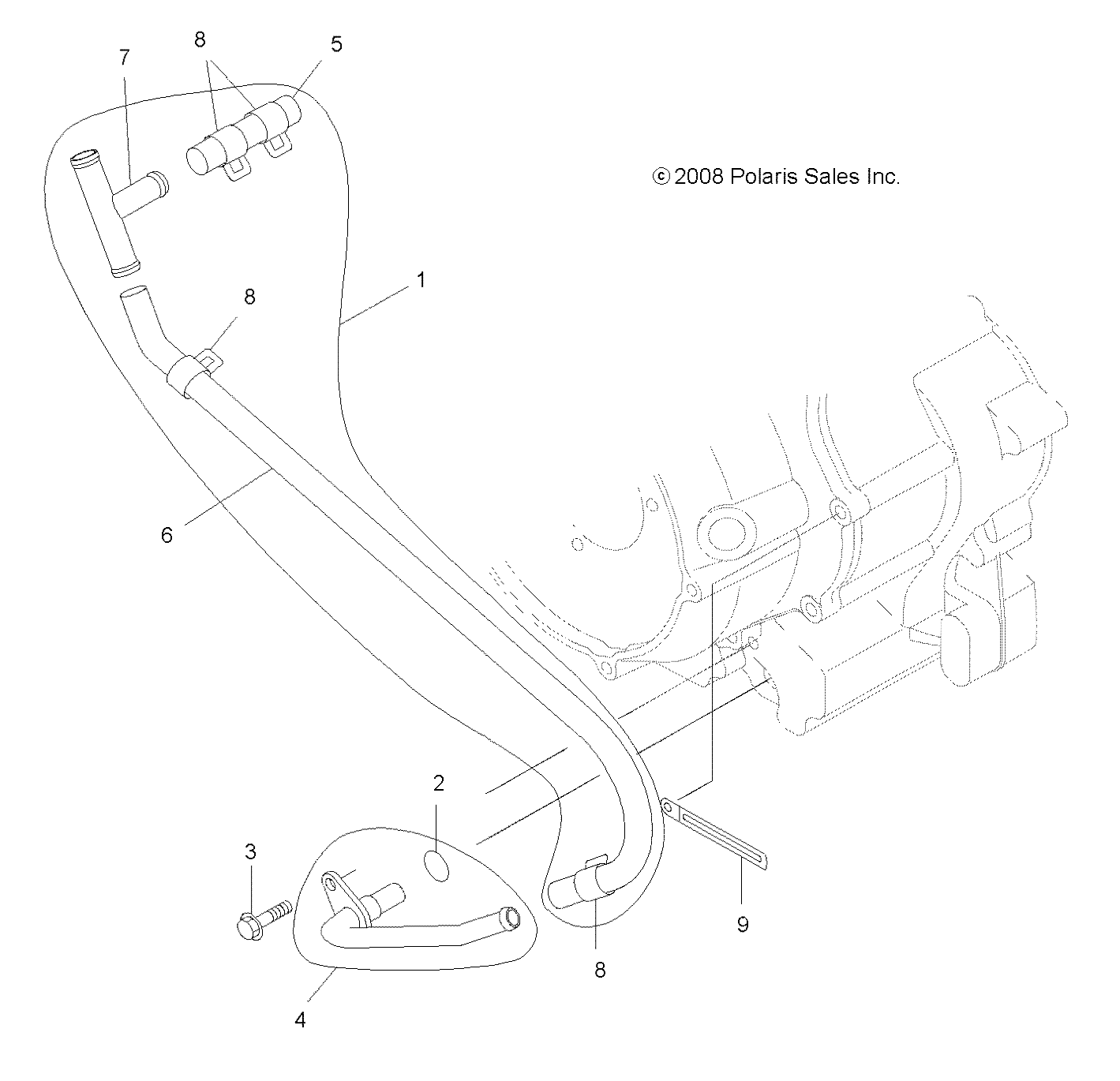

  Reference # Part# Description Quantity
  1 3090226 Asm., Breather Hose [Incl. 5-8] 1
  2 3090150 O-Ring 1
  3 3089476 Bolt, Flange 1
  4 3090329 Asm., Pipe, Breather [Incl. 2] 1
  5 3090227 Hose, Cam 1
  6 3090228 Hose, Case 1
  7 3090229 T-Connector 1
  8 3084085 Clamp, Hose 4
  9 3083590 Clamp 1
